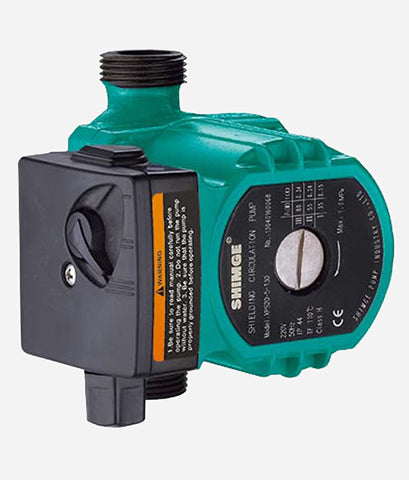

Shimge ZPS Circulation Hot water Pump

Shimge China

Circulation Pump

8 In Stock

Pumps with bronze or stainless steel housings are also suitable for use in hot water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc Performance Range Flow: 5m3/h Head: 12m 3 speed adjustment Automatic mode...
-
+
₦168,955.00

Pumps with bronze or stainless steel housings are also suitable for use in hot water service systems.

Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc

Performance Range

  • Flow: 5m3/h
  • Head: 12m
  • 3 speed adjustment
  • Automatic mode and manual model are available
  • Brass automatic flow control
  • 100% Duty cycle - designed for continuous operation
  • In-line booster pump for pressure boosting
  • Allows fluid temperature up to 110°C
  • Low Noise
  • No Leakage
  • Power: 245w (speed 3); 210w (speed 2); 140w (speed 1)

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







ZPS 15-9-140

120W

9

1.6

ZPS 20-12-180

240W

3.5

12



Motor

Single-Phase 220V/50Hz

Protection: IP44

Insulation: Class H



6 months warranty
