Shimge JET-A Peripheral Self-priming Pump
Shimge China
Single-stage, Self-priming Peripheral Pump
6 In Stock

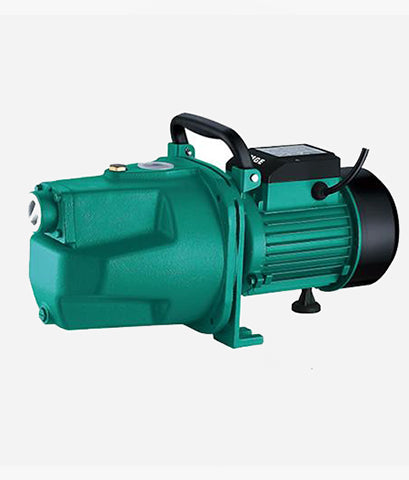

The pump body of JET self-priming jet pump is cast iron, and the base is aluminum alloy die-casting. It uses a high quality mechanical seal and vanes. The jet uses PPO heat resistant engineering plastics. The impeller is available in a variety of materials. This product has been optimized for more than ten years and has the advantages of short self-priming time, stable operation, reliable performance and durability. It can be widely used in drinking water filling, well water lifting, pipeline pressurization, agricultural and garden irrigation, industrial water supply and other occasions.
Performance Range
- Flow: 6m3/h
- Head: 62m
- Suction head up to 9m
- Liquid temperature up to +40
- Ambient temperature up to +40
- Working pressure: 5bar
- pH: 6.5 to 8.5
Model |
Power |
Max. Flow(m3/h) |
Max. Head(m) |
Single phase |
|
|
|
JET 1500A |
2HP (1.5kW) |
5.4 |
55 |
JET 1800A |
2.5HP (1.8kW) |
6 |
62 |
Features
- The JET type self-priming pump
- High suction, with short time
- Different impeller material configuration
Motor
Single-Phase 220V/50Hz
Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running
Protection: IP44
Insulation: Class B
6 months warranty
-
