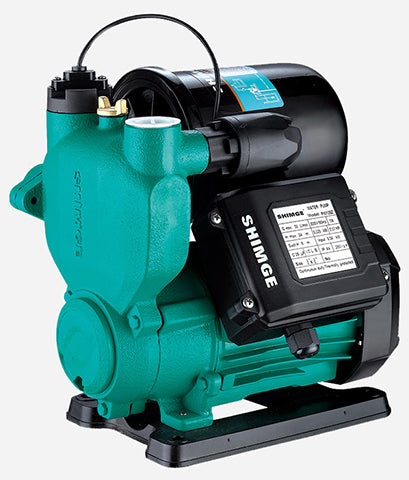

Shimge PW-Z Peripheral Self-priming Pump

Shimge China

Single-stage, Self-priming Peripheral Pump

Out of stock

A self-priming peripheral pump for both hot and cold water. Advanced structure with lower noise. Intelligent control by both flow sensor and pressure sensor, which is convenient. Performance Range Flow: 3.4m3/h Head: 50m Suction head up to 8m Liquid temperature up to +90 Ambient temperature up to +40 Working pressure:...
-
+
₦130,211.00

Click Here to be notified by email when Shimge PW-Z Peripheral Self-priming Pump becomes available.

A self-priming peripheral pump for both hot and cold water. Advanced structure with lower noise. Intelligent control by both flow sensor and pressure sensor, which is convenient.

Performance Range

  • Flow: 3.4m3/h
  • Head: 50m
  • Suction head up to 8m
  • Liquid temperature up to +90
  • Ambient temperature up to +40
  • Working pressure: 5bar
  • pH: 6.5 to 8.

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







PW 370Z

0.5HP (0.37kW)

2.4

36

PW 550Z

0.75HP (0.55kW)

3

42

PW 750Z

1HP (0.75kW)

3.4

50



Applications Fields

Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.

Widely used in household water supply, well water pumping, tap water pressure, water tower's supply, solar or hot water systems pressure, etc.

Features

  1. A self-priming peripheral pump for both hot and cold water.
  2. Advanced structure with lower noise.
  3. Intelligent control by both flow sensor and pressure sensor, which is convenient

Materials

Pump body: Cast iron with stainless steel insert

Motor casing: Aluminum

Impeller: Brass

Motor

Single-Phase 220V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B



6 months warranty
