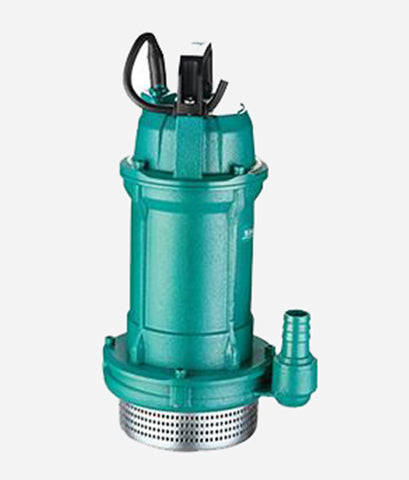

Shimge QDX-K1 Submersible Drainage Pump

Shimge QDX-K1 Submersible Drainage Pump

₦115,378.00

Shimge China

Submersible Drainage Pump

2 In Stock

QDX-K1 submersible drainage pumps deliver liquids containing hard solids, fibrous materials, and particularly dirty, sticky and slippery liquids. Its unique design avoids the clogging and entanglement that water can cause at low speeds and the paper, textiles, garbage bags and other materials in the sewage can pass freely. Performance Range...
-
+
₦115,378.00
Add to wishlist

QDX-K1 submersible drainage pumps deliver liquids containing hard solids, fibrous materials, and particularly dirty, sticky and slippery liquids. Its unique design avoids the clogging and entanglement that water can cause at low speeds and the paper, textiles, garbage bags and other materials in the sewage can pass freely.

Performance Range

  • Flow: 10m3/ h
  • Head: 33m
  • Maximum liquid temperature:+40℃ ,
  • Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
  • hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
  • PH: 6.5 to 8.5
  • Immersion depth from 0.5m-5m

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







QDX 1.5-2.5-0.55 K1

0.75HP (0.55kW)

6.5

26

QDX 1.5-32-0.75 K1

1HP (0.75kW)

8

33

QDX 3-30-1.1 K1

1.5HP (1.1kW)

10

31



Application fields

QDX-K1 submersible drainage pumps has a strong sewage discharge capacity and is suitable for the transportation and discharge of sewage. The pump is suitable for petrochemical, sewage treatment, power environmental protection, medicine, brewing and other fields.

Features

  1. New industrial design lowers motor temperature rise.
  2. Optimized motor design improves work efficiency.
  3. It has alloy impeller of high performance engineering plastics or aluminum.

Motor

Single-Phase 220V / 50Hz

6 months warranty
