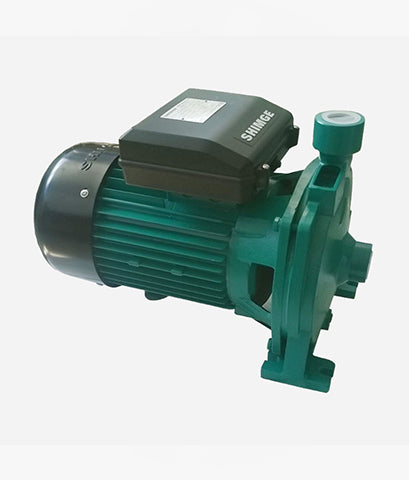

Shimge CPM Surface Pump

Shimge China

Single-stage Horizontal Pump

15 In Stock

The CPM series single stage centrifugal pump is a highly efficient household electric pump consisting of an energy-saving motor and a centrifugal pump. It uses a high quality special mechanical seal. It is light in weight, low in consumption, easy to operate, safe and reliable. Performance Range Flow: 8.4m3/h Head:...
-
+
₦73,023.00

The CPM series single stage centrifugal pump is a highly efficient household electric pump consisting of an energy-saving motor and a centrifugal pump. It uses a high quality special mechanical seal. It is light in weight, low in consumption, easy to operate, safe and reliable.

Performance Range

  • Flow: 8.4m3/h
  • Head: 59m
  • Suction head up to 7m
  • Liquid temperature up to +40
  • Ambient temperature up to +40
  • Working pressure: 6bar
  • pH: 6.5 to 8.

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







CPM 130

0.5HP (0.37kW)

6

22

CPM 146

0.75HP (0.55kW)

6.6

26

CPM 158

1HP (0.75kW)

7.2

32

CPM 170

1.5HP (1.1kW)

7.8

44

CPM 190

2HP (1.5kW)

7.8

52

CPM 200

3HP (2.2kW)

8.4

59



Applications Fields

The CPM centrifugal pump is suitable for conveying clean water with a temperature not exceeding 80 ° C or a liquid having a physicochemical property similar to clean water. It is suitable for pumping water, car washing, fountain water supply, garden irrigation, etc. in domestic wells.

Features

1) This pump is made of high quality corrosion resistant material. It is compact and sturdy;

2) The air-cooled dust-proof motor has built-in thermal overload protection device, so the operation is safe and reliable;

3) Coaxial type machine and floating ring structure is designed to improve mechanical efficiency and volumetric efficiency;

4) The pump has a threaded joint, so the installation is quick and easy;

5) It has a simple structure, few components, and is easy to maintain and repair.

Materials

Pump body: Cast iron with stainless steel insert

Motor casing: Aluminum

Impeller: Brass

Motor

Single-Phase 220V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B



6 months warranty

Shimge CPM catalogue
