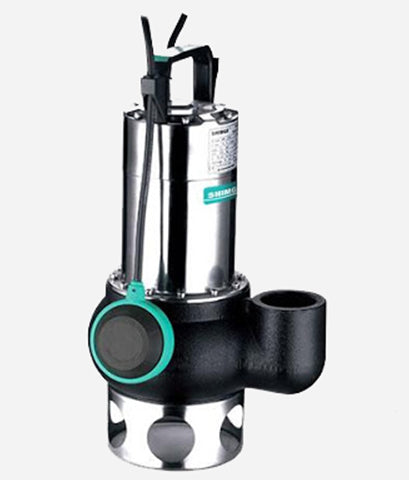

Shimge WSD Submersible Sewage Stainless Pump

Shimge China

Submersible Sewage Pump

40 In Stock

With small size and light weight, the WSD(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial, construction, aquaculture, fish ponds, etc.. Performance Range Flow: 22m3/ h Head: 10m...
-
+
₦196,229.00

With small size and light weight, the WSD(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial, construction, aquaculture, fish ponds, etc..

Performance Range

  • Flow: 22m3/ h
  • Head: 10m
  • Liquid temperature up to +40
  • Passage of suspended solids up to 50mm
  • Immersion depth from 0.5m-5m
  • pH: 4 to 10.

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Single phase







WSD 75/35

1HP(0.75kW)

22

10

WSD 75/35T

1HP (0.75kW)

22

9.5

WSD 75/50

1HP (0.75kW)

20

95

WSD 75/50T

1HP (0.75kW)

20

95



Applications Fields

With small size and light weight, the WSD(50Hz) series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial , construction, aquaculture, fish ponds, etc.

Features

  1. External components of SS304 material which is corrosion-resistant.
  2. Whirlpool impeller with larger passage of suspended solid.
  3. Automatic operation for the floating switch.

Motor

Single-Phase 220V/50Hz

6 months warranty

Shimge WSD Catalogue
