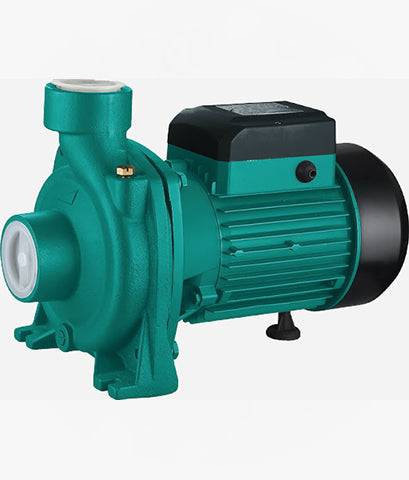

Shimge SHF Surface Pump

Shimge China

Single-stage Horizontal Pump

9 In Stock

SHF(m) centrifugal pump is designed according to the principle of centrifugal force. It has a high-speed rotating impeller blade that can drive the water to rotate and pump the water out to achieve the purpose of transportation. This centrifugal pump is a horizontal multi-stage non-self-priming multistage centrifugal pump with a...
-
+
₦308,652.00

SHF(m) centrifugal pump is designed according to the principle of centrifugal force. It has a high-speed rotating impeller blade that can drive the water to rotate and pump the water out to achieve the purpose of transportation. This centrifugal pump is a horizontal multi-stage non-self-priming multistage centrifugal pump with a long shaft motor. The compact construction allows the pump to be small in size, with an axial inlet or radial outlet. It is energy efficient, compact, and the whole is sealed and easy to maintain. The ducted installation makes it a small installation space.

These pumps are mainly used for mine drainage, industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire booster, heating, bathroom and other cold and warm water circulation pressurization and equipment support, etc., especially suitable for small boiler water supply.

Performance Range

  • Flow: 24.5m3/h
  • Head: 140m
  • Suction head up to 7m
  • Liquid temperature up to +40
  • Ambient temperature up to +40
  • Working pressure: 5bar
  • pH: 6.5 to 8.5

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Three phase







SHF 6A

3HP (2.2kW)

78

18.5

SHF 20A

5.5HP (4kW)

129

19.5

SHF 20B

4HP (3kW)

114

16.5

SHF 30A

10HP (7.5kW)

140

24.5

SHF 30B

7.5HP (5.5kW)

125

20



Features

  1. The motor uses low-noise ball bearings, and its blades undergo a rigorous dynamic balance test to make the pump run smoothly.
  2. Closed copper coil and electromagnetic winding design can effectively reduce motor vibration and energy consumption.
  3. The net cover can be effectively protected from heat dissipation by electroplating and anti-rust treatment.
  4. The advanced hydraulic model has high efficiency and a wide range of performance.
  5. Large flow
  6. Compact structure, easy to install

Motor

Three-Phase 380V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B



6 months warranty

Shimge SHF Catalogue
