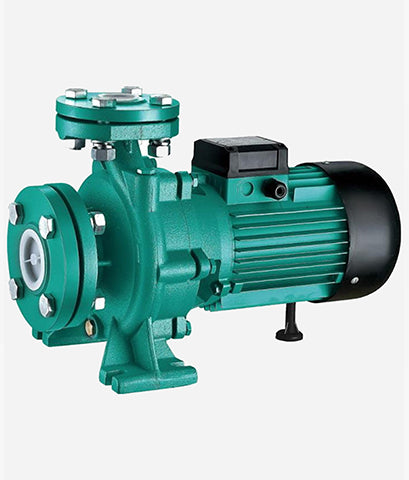

Shimge SGT Surface Pump

Shimge China

Single-stage Horizontal Pump

2 In Stock

This SGT centrifugal pump is suitable for fire protection, refrigeration systems and industrial, agricultural, high-rise, hotel water, deep well pumping, fresh water and seawater transport. Performance Range Flow: 89.5m3/h Head: 210m Suction head up to 8m Liquid temperature up to +60 Ambient temperature up to +40 Working pressure: 16bar pH:...
-
+
₦300,465.00

This SGT centrifugal pump is suitable for fire protection, refrigeration systems and industrial, agricultural, high-rise, hotel water, deep well pumping, fresh water and seawater transport.

Performance Range

  • Flow: 89.5m3/h
  • Head: 210m
  • Suction head up to 8m
  • Liquid temperature up to +60
  • Ambient temperature up to +40
  • Working pressure: 16bar
  • pH: 6.5 to 8.5

Model

Power

Max. Flow(m3/h)

Max. Head(m)

Three phase







SGT 32-160/2.2

3HP (2.2kW)

24

29.6

SGT 32-160/3

4HP (3kW)

27

35

SGT 32-200/3

4HP (3kW)

27

43

SGT 32-200/4

5.5HP (4kW)

27

52

SGT 32-200/5.5

7.5HP (5.5kW)

24

59.5

SGT 32-200/7.5

10HP (7.5kW)

24

69

SGT 32-250/11

15HP (11kW)

24

89.5

SGT 40-125/2.2

3HP (2.2kW)

48

23.2

SGT 40-160/3

4HP (3kW)

42

29.5

SGT 40-160/4

5.5HP (4kW)

48

36

SGT 40-200/5.5

7.5HP (5.5kW)

42

43.8

SGT 40-200/7.5

10HP (7.5kW)

48

53.6

SGT 40-250/11

15HP (11kW)

48

67.5

SGT 40-250/15

20HP (15kW)

48

80

SGT 50-125/4

5.5HP (4kW)

84

23.1

SGT 50-160/5.5

7.5HP (5.5kW)

84

30.6

SGT 50-160/7.5

10HP (7.5kW)

90

38

SGT 50-200/11

15HP (11kW)

90

53.5

SGT 50-250/15

20HP (15kW)

84

64

SGT 50-250/18.5

25HP (18.5kW)

90

75.8

SGT 50-250/22

30HP (22kW)

90

86

SGT 65-125/5.5

7.5HP (5.5kW)

108

21.3

SGT 65-125/7.5

10HP (7.5kW)

120

26

SGT 65-160/11

15HP (11kW)

120

34.5

SGT 65-160/15

20HP (15kW)

138

41

SGT 65-200/15

20HP (15kW)

120

45.5

SGT 65-200/18.5

25HP (18.5kW)

120

52.3

SGT 65-250/22

30HP (22kW)

120

64.7

SGT 80-125/7.5

10HP (7.5kW)

138

25

SGT 80-200/22

30HP (22kW)

210

48



Applications Fields

This SGT centrifugal pump is suitable for fire protection, refrigeration systems and industrial, agricultural, high-rise, hotel water, deep well pumping, fresh water and seawater transport.

It is used to transport clean water without abrasive particles and other liquids with similar properties to water.

Features

  1. The pump runs smoothly and the noise is low.
  2. The shaft seal is sealed by soft packing or mechanical seal. The seal is safe and reliable, the structure is simple, and the maintenance is convenient and quick.
  3. The shaft is a full-sealed structure, ensuring that it is not in contact with the medium, so it is not rusted and has a long service life.
  4. Pump body: Cast Iron

Motor

Three-Phase 380V/50Hz

Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, and continuous running

Protection: IP44

Insulation: Class B



6 months warranty

Shimge SGT Catalogue
