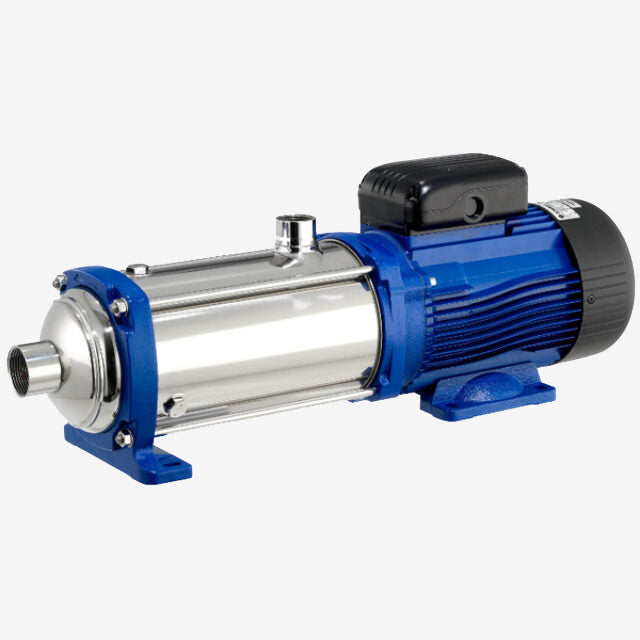

Lowara e-HM P Series Multi-stage Pump

₦294,472.00

Brand : Lowara Italy

Product Type : Multi-stage Horizontal Pump

Availability : 3 In Stock

EHM – P Series Multi-stage horizontal pump The e-HM series is a modern, robust designed pump State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs. Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life. High-efficiency hydraulics, motor and...

Quantity :

Subtotal : ₦294,472.00

Product Description

EHM – P Series Multi-stage horizontal pump

The e-HM series is a modern, robust designed pump

State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs.

Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life.

High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum.

EHM – P Series is Stainless steel (AISI 304) with Noryl impellers

Performance Range

Best-in class efficiency
Long service life
Low noise levels
Delivery: up to 14 m³/h
Head: up to 83 m
Power: from 0.30 kW up to 3.0 kW
Maximum operating pressure: 16bar

Model		Power	Max. Flow(m3/h)	Max. Head(m)
Single phase	Three phase
-	3HM02P03T	0.4HP (0.3kW)	4.2	20.9
-	3HM03P04T	0.5HP (0.4kW)	4.2	31.3
3HM03P05M	-	0.75HP (0.5kW)	4.2	31.2
3HM04P05M	3HM04P05T	0.75HP (0.5kW)	4.2	40.6
3HM05P07M	3HM05P07T	1HP (0.75kW)	4.2	52.5
-	3HM06P11T	1.5HP (1.1kW)	4.2	66.8
3HM06P09M	-	1.2HP (0.95kW)	4.2	63
-	5HM02P04T	0.5HP (0.4kW)	7.2	20.1
5HM02P05M	5HM02P05T	0.75HP (0.5kW)	7.2	20.1
5HM03P05M	5HM03P05T	0.75HP (0.5kW)	7.2	28.6
5HM04P07M	-	1HP (0.75kW)	7.2	39.7
-	5HM04P11T	1.5HP (1.1kW)	7.2	42.9
5HM05P09M	-	1.2HP (0.95kW)	7.2	49.3
5HM05P11M	5HM05P11T	1.5HP (1.1kW)	7.2	53.1
-	5HM06P15T	2HP (1.5kW)	7.2	64
10HM02P11M	10HM02P11T	1.5HP (1.1kW)	14	26.9
10HM03P15M	10HM03P15T	2HP (1.5kW)	14	39.7
-	10HM04P22T	3HP (2.2kW)	14	55.7
-	10HM05P30T	4HP (3kW)	14	69.8
-	10HM06P30T	4HP (3kW)	14	83

Applications Fields

e-HM Residential:

Reliable water supply for most buildings; from family houses up to 10 floor apartment buildings. The e-HM is available in different versions

Bare pump
On/ off system with pressure switch and pressure tank
Semi constant pressure system with Genyo electronic pump controller
Constant pressure system with Resiboost variable speed controller
Constant pressure system; Smart Pump with ultra-premium efficiency IES2 variable speed package including IE5 motor and communication with BMS systems

e-HM Industrial:

Full offering for numerous applications including washing & cleaning, water treatment and food & beverage industries.
