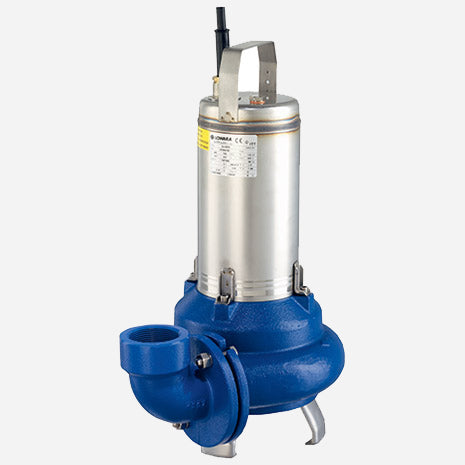

Lowara DL Submersible Sewage Pump

Lowara DL Submersible Sewage Pump

₦1,545,773.00

Lowara Italy

Submersible Sewage Pump

3 In Stock

Submersible pumps for solids laden wastewater. Made in cast iron and stainless steel, with mechanical seal and versions with single-channel impeller and Vortex impeller. Pump body: Cast iron Impeller: Stainless steel Performance Range Delivery: up to 42 m³/h Head: up to 19.2m Power supply: three-phase Maximum immersion depth: 5m Free...
-
+
₦1,545,773.00
Add to wishlist

Submersible pumps for solids laden wastewater. Made in cast iron and stainless steel, with mechanical seal and versions with single-channel impeller and Vortex impeller.

Pump body: Cast iron

Impeller: Stainless steel

Performance Range

  • Delivery: up to 42 m³/h
  • Head: up to 19.2m
  • Power supply: three-phase
  • Maximum immersion depth: 5m
  • Free passage: up to 65mm

Model



Power

Max. Flow(m3/h)

Max. Head(m)

Single phase

Three phase







-

DL 105

1.5HP (1.1kW)

30

11.6

-

DL 109

1.5HP (1.1kW)

36

15.4

-

DL 125

2HP (1.5kW)

42

19.2



Market Sectors

  • Residential
  • Commercial

Applications Fields

  • Pumping of sewage with suspended solids and filaments
  • Draining of septic tanks, sumps and wastewater discharge tanks
  • Emptying of drains and tanks in industrial and ecological applications
  • Emptying of tanks or reservoirs
  • Emergency draining in flooded areas

Materials

  • Pump body: Cast iron
  • Suction flange: Cast iron
  • Feet: Cast iron
  • Shaft extension: Cast iron
  • Motor casing: Cast iron
  • Impeller: Stainless steel
  • Elastomers: NBR
  • Mechanical seal: Carbon/Ceramic/NBR
  • Discharge elbow: Cast iron

Motor

Three-Phase 380V/50Hz

6 months warranty
