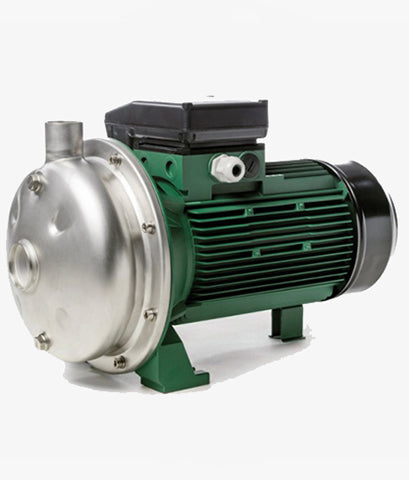

Dab KI End Suction Centrifugal Pumps

Single-impeller stainless steel end suction centrifugal pump, suitable for thermal waters, industrial washing, civil and industrial pressure boosting (cold, hot, refrigerated liquid).

Wide range of stainless steel pumps for domestic and industrial applications.

Installation: horizontal or vertical position, provided that the motor is always above the pump

Performance Range

• Stainless steel pumps made of AISI 304 or AISI 316
• Long service life
• Delivery: up to 11 m³/h
• Head: up to 40m
• both single and three-phase
• from 0.75 kW up to 1,5 kW
• Maximum operating pressure: 8 bar
• Liquid temperature range: from -10°C to +90°C

Market Sectors

• Residential
• Commercial
• Light Industrial

Applications Fields

• Handling of chemically and mechanically non-aggressive water and liquids (*).
• Water supply.
• Irrigation.
• Reverse osmosis (where de-mineralized water is used).
• Industrial washing.
• Thermal waters.
• Chlorine dispensing in swimming pools.
• Jewellery industry.
• Wine production.
• Rain water collection
• Pressure boosting
• General industry
• Water treatment
• Cooling and chilling
• Heat recovery
• Heating, ventilation and air-conditioning

Materials

• Pump body: Stainless steel
• Impeller: Stainless steel
• Diffuser: Stainless steel
• Seal housing: Stainless steel
• Adapter: Aluminium
• Mechanical seal: Ceramic/Carbon/FPM
• Fill and drain plugs: Stainless steel
• Elastomer: NBR

Motor

Single-Phase 220V/50Hz

Three-Phase 380V/50Hz

6 months warranty on hydraulic parts
