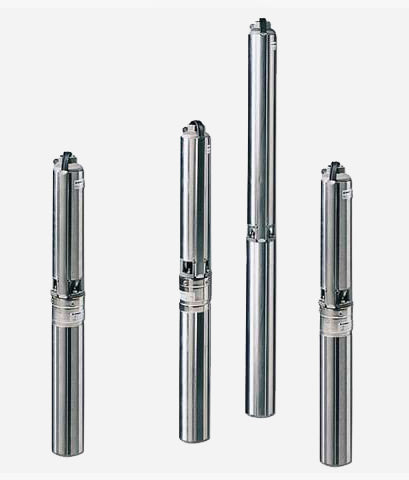

Lowara e-GS Submersible Borehole Pump

₦831,000.00

Brand : Lowara Italy

Product Type : Submersible Borehole Pump

Availability : 60 In Stock

The e-GS series is a robust 4" pump designed for long life. It's built mainly in stainless steel, has casted discharge and a special floating impeller design to enhance the wear resistance and to maintain the performance over time. The e-GS series is designed specially to be used in 4"...

Quantity :

Subtotal : ₦787,000.00

Product Description

The e-GS series is designed specially to be used in 4" wells and its ideal for use in irrigation systems, pressure boosting, geothermal systems and fountain applications.

All e-GS pumps can be coupled to 4" NEMA standard motors.

Performance Range

4" borehole pump
Long service life
Designed for long life with casted discharge and floating impeller design
Delivery: up to 22 m³/h
Head: up to 214m
Both single and three-phase
From 0.75 kW up to 7.50 kW
Maximum immersion depth: 300 m

Model		Power	Max. Flow (m³/h)	Max. Head (m)
Single phase	Three phase
4GS07M	-	1HP (0.75kW)	5.4	54
4GS11M	-	1.5HP (1.1kW)	5.4	84
8GS15M	8GS15T	2HP (1.5kW)	11	53.1
8GS22M	8GS22T	3HP (2.2kW)	11	81.2
-	8GS30T	4HP (3kW)	11	113.2
-	8GS40T	5.5HP (4kW)	11	154.9
-	8GS55T	7.5HP (5.5kW)	11	214.8
-	12GS40T	5.5HP (4kW)	15	100.9
-	12GS55T	7.5HP (5.5kW)	15	145.2
-	12GS75T	10HP (7.5kW)	15	178.4
-	16GS55T	7.5HP (5.5kW)	22	113.7
-	16GS75T	10HP (7.5kW)	22	131.5
